Stainless Steel Hollow Bars




Send Enquiry

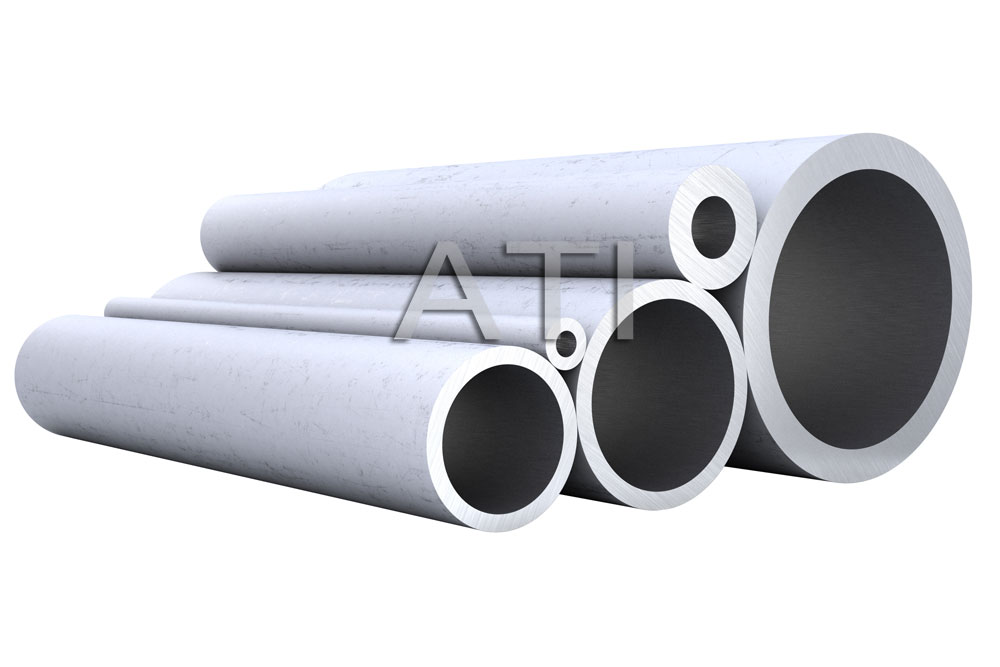

Angara Tube India (ATI) is a leading manufactuers, exporters & suppliers of HOLLOW BARS in wide range of sizes & grades. Stainless steel hollow bar is used in conditions where corrosion is an issue and applications where it is more economical to use a hollow section rather than bore out solid stainless steel bar.This material has been very useful and effective in many industries. Hollow bar includes several grades of austenitic stainless steel as well as duplex stainless steel. Hollow bar sizes ranges from outside diameter 20 to 406 mm. Austenitic stainless steel & duplex stainless steels have properties that give them a different machinability compared to carbon steel or ferritic and martensitic stainless steels. Hollow bar minimizes material waste & reduces the total machining requiremens by avoiding the initial drilling operation.

Hollow bars are fully threaded, "disposable" drill rods capable of drilling holes utilizing sacrificial bits that will advance the drill string to the required depth and then allow them to be grouted in place. This process creates the steel reinforcing portion of an anchor or pile. Hollow bar products are a valuable and multi-functional addition to the geotechnical contractor's toolbox. They can be used as tie back or tie down anchors, rock anchors, soil nails and micropiles in a large array of challenging applications.



Specification

MATERIAL :

Stainless Steel

ASTM A511-96 316L, SAE 30316L AISI 316L, UNS S31603 SS 304, 304L, 304H, 316, 316L, 316Ti, 309, 310S, 317L, 321, 347, 409, 410,416, 420, 430, 446, 904L, 17-4 PH, 15-5 PH

Carbon Steel ASTM A53 Gr B, ASME SA53 Gr B, API-5L Gr B, ASTM A106 Gr B, ASME SA106 Gr B, ASTM A106 Gr C, PSL 1 and PSL2
Alloy Steel P5, P9 ,P11, P22, P91, P92
Duplex Steel 31803/32205/2205
Super Duplex Steel 32750(F53),32760(F55)
SIZE : From 21.3mm Dia to 406.4mm Dia
WALL THICKNESS 5mm to 100mm
LENGTH : Single Random, Double Random & Cut Length
END PLAIN END, BEVELLED END, THREADED
VALUE ADDED SERVICES HOT DIP GALVANIZING,DRAW & EXPANSION,ELECTRO POLISH
PACKING Packed in plastic sheet rolls, wodden boxes, steel strips bundles or as per customer requirements.
Application
  • Chemical & petrochemical plants
  • Paper production plants
  • Textile production plants
  • Food production equipment
  • Anti-friction & slide bearing production
  • The high quality of stainless steel hollow bar are used for Petroleum, chemical industry, electric power, boiler, high temperature resistant, low temperature resistant etc.
