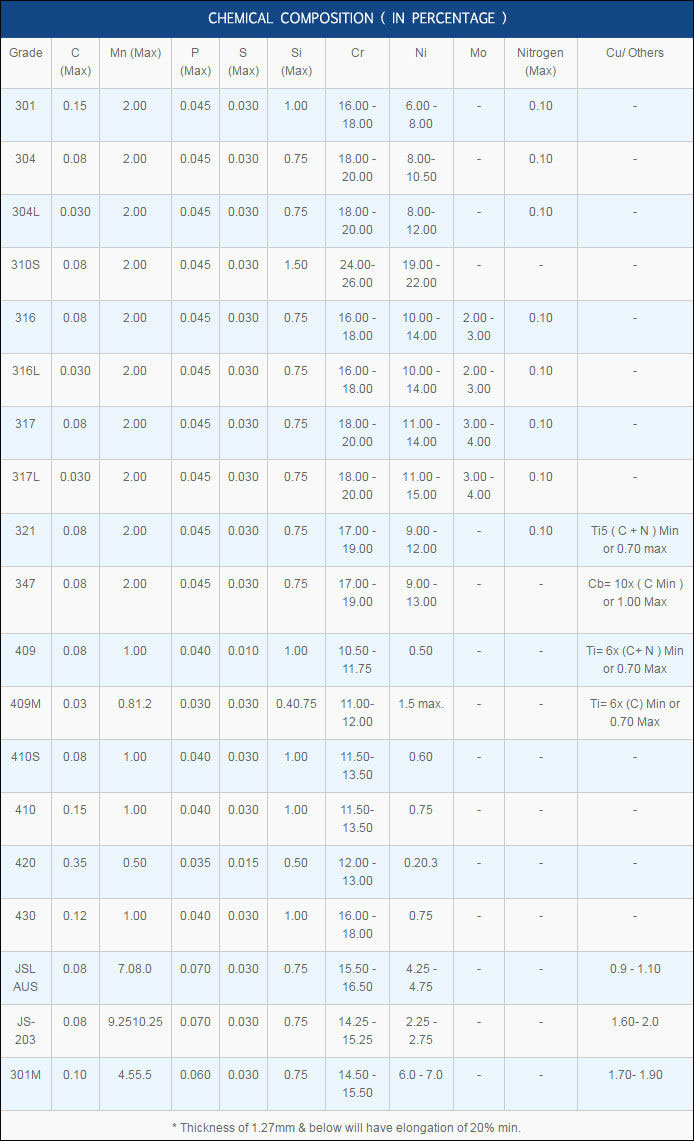

Chemical Composition of Stainless Steel Series

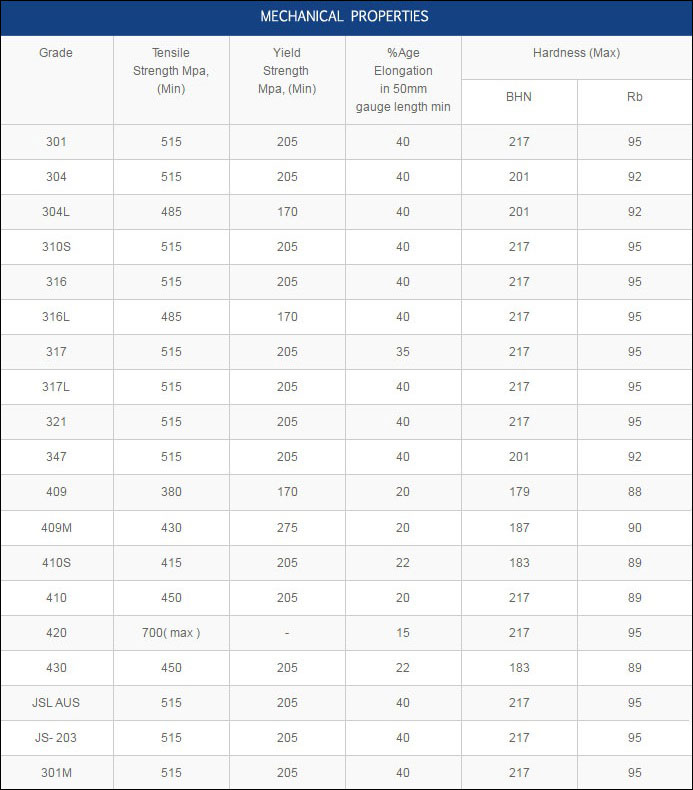

Mechanical Composition of Stainless Steel Series

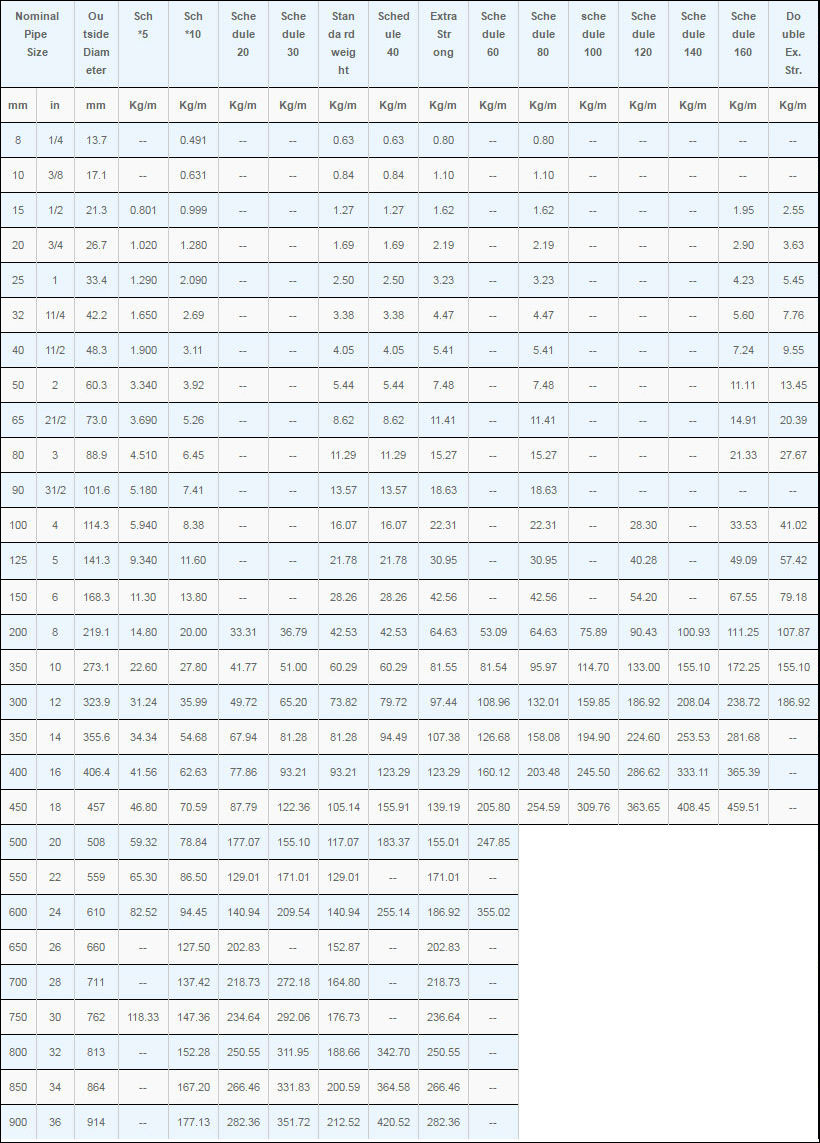

Weight & Dimension of Schedule Pipe

Line Pipe Weight

Non-Ferrous Metal

Weight Formula

  1. 1. Weight of Stainless Steel Pipes & Tubes
    OD(mm)-W.T. (mm) x W.T.(mm)x0.02466=Kg.per Mtr.

  2. 2. Sheet Width Required for rolled and welded pipes
    O.D.(mm) - THK(mm) x 3.14=SheetWidth

  3. 3. Weight of Stainless Steel Sheets
    Length (mtr.) x Wdth(mtr.) x Thk(mm)x8=Kg Per Sheet

  4. 4. Weight of Stainless Steel Circle & Blanks
    OD(mm) x OD>(mm) x Thk(mm)/160/1000=Kg Per Pcs.

  5. 5. Weight of Stainless Steel Rounds
    Dia.(mm)xdia.(mm) x 0.00623=PerMtr.

  6. 6. Weight of Stainless Steel Hexagonal Rods
    Dia.(mm)xDia.(mm) x 0.00679=PerMtr.

  7. 7. Weight of Stainless Steel Square Bars
    Dia.(mm)xDia.(mm) x 0.00787=PerMtr.

  8. 8. Weight of Carbon Steel Pipes & Tubes
    Dia.(mm)-W.T.(mm) XW.T.(mm) x 0.02466=Kg.PerMtr.

  9. 9. Weight of Carbon Steel Sheets & Plates
    Length (mtr.) x Wdth(mtr.) x Thk(mm) x 7.85=Kg Per Sheet

  10. 10. Weight of Copper Pipes
    OD(mm)-W.T. (mm) X W.T.(mm) x 0.0256=Kg.per Mtr.

  11. 11. Weight of Lead Pipes(appro.)
    OD(mm)-W.T. (mm) XW.T.(mm) x 0.0345=per Mtr.

  12. 12. Weight of Lead Sheets(appro.)
    Length (mtr.) XWidth(mtr.) XThk(mm) x 11.2=Kg Per Sheet

  13. 13. Weight of Alluminium Pipes(appro.)
    OD(mm)-W.T. (mm) XW.T.(mm) x 0.0082=Kg per Mtr.

  14. 14. Weight of Alluminium Sheets(appro.)
    Length (mtr.) X Width(mtr.) X Thk(mm) x 2.66=Kg Per Sheet

    Tensile Strength Conversion Table
    1. Kg/mm2 x 9.81 = N/mm2=MPa
    2. PSi x 0.0007 = Kg/mm2
    3. KSi x 1000 = PSi
    4. Kg/mm2 x 1.422 = KSi

Weight Calculator

Enter your values:
Material:
Shape:
Quantity:
:
:
:
Results:
Calculated Weight: Lbs
Calculated Weight: Kgs
